Coleman | Mach Control Box | 9530A751 | Heat Pump

Product details

Technical Overview

Overview & Function

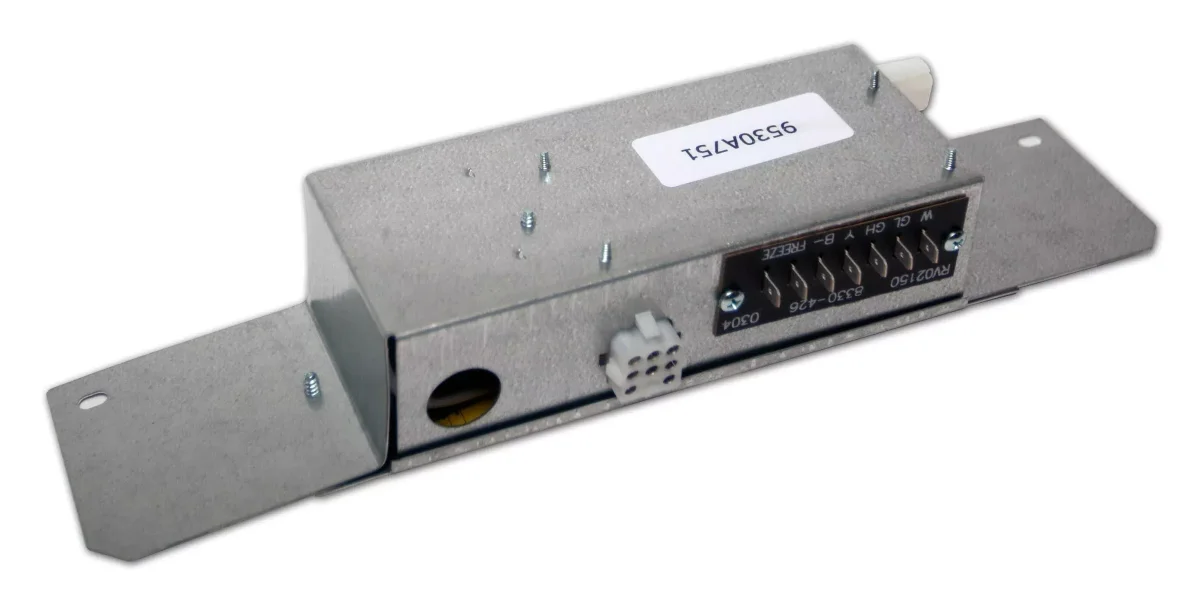

The Coleman 9530A751 control box supports Mach heat-pump operation and Mach 8 configurations. It provides control coordination for heating and cooling functions in listed systems. This OEM box includes electric strip support where heat-strip operation is configured. It is intended for service replacement where 9530A751 is specified.

Fitment & Compatibility

The box is listed for Mach heat pumps plus Mach 8 units with heat strip. Buyers should confirm control box number 9530A751 and system type before ordering. It is differentiated from 9630A751 by its heat-pump and Mach 8 strip-heat focus. Verify heating configuration against system documentation.

Technical Construction & Specifications

The assembly is an OEM Coleman-Mach control box for heat-pump integration. It is built to manage electric strip support within the stated Mach applications. The design emphasizes reliable control connection for heat and cool modes. Compare wiring layout with the original box before replacement.

Installation & Maintenance Guidelines

Installation should be performed by qualified personnel with power disconnected. Verify heat-pump model and heat-strip wiring before replacing the control box. Secure the assembly and confirm all system connections after installation. Test heat-pump and strip-heat functions as configured before returning to service.
