Technical Overview
Overview & Function

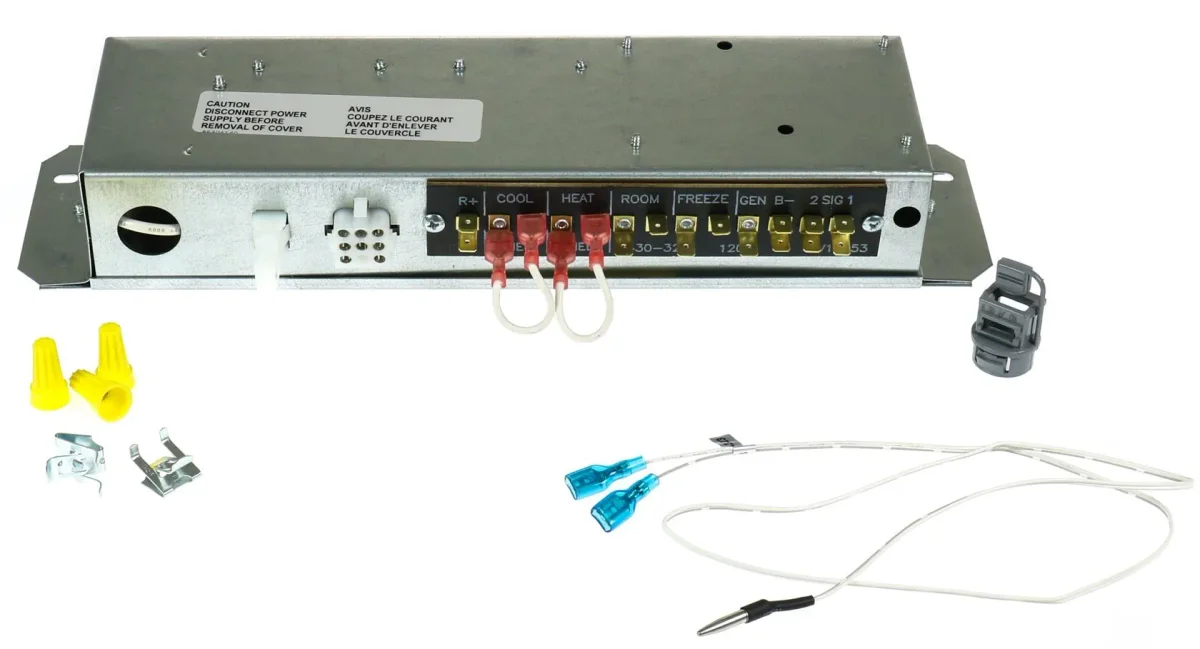

The Coleman 9630A751 control box assembly supports Mach ceiling assembly air-conditioner systems. It provides central control connection for system operation with compatible zone thermostats. This heat-ready control box is intended for service replacement where 9630A751 is specified. It helps restore factory control coordination in ducted climate systems.
Fitment & Compatibility
This control box is listed for Mach ceiling assembly applications. It works with zone thermostats 9330A3341 and 9330A3351 where those controls are used. Buyers should confirm the existing control box marking 9630A751 and system type. It is differentiated from heat-pump-focused 9530A751 by its ceiling-assembly application.
Technical Construction & Specifications
The assembly is an OEM Coleman-Mach control box for ceiling system integration. It is built to interface with the stated zone thermostat models and system wiring. The heat-ready design supports systems configured for heat operation as specified. Compare wiring positions with the original box before replacement.
Installation & Maintenance Guidelines
Installation should be performed by qualified personnel with power disconnected. Verify thermostat models 9330A3341 or 9330A3351 and system wiring before replacement. Secure the control box in the ceiling assembly and confirm all connections. Test cooling and heat-ready functions after installation.
