Technical Overview
Overview & Function

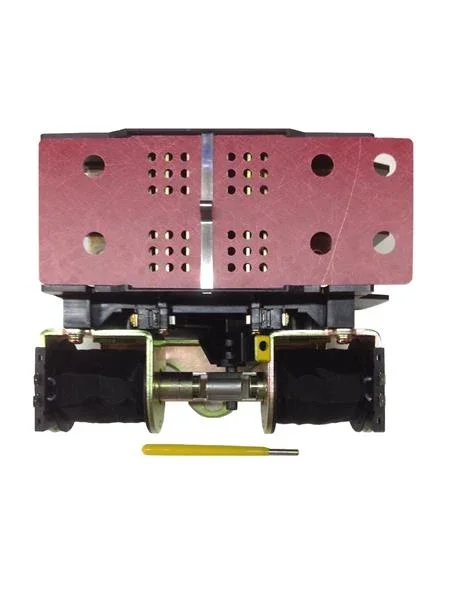

The Generac 0L2911 is an HSB 200A 2P 250V transfer switch mechanism that restores utility and standby transfer function. It directly replaces part 0D9618 without replacing the full enclosure. This mechanism-only offering suits qualified service where surrounding switchgear remains serviceable.
Fitment & Compatibility
Fitment is listed for HSB 200A 2P 250V applications calling for mechanism 0L2911 as replacement for 0D9618. Ratings, frame and actuator interfaces must match the host switch exactly. Verify generator model, switch serial, voltage and pole configuration with Generac documentation before ordering.
Technical Construction & Specifications
The mechanism is identified as 0L2911 superseding 0D9618 within a 200A 2P 250V transfer context. Importantly, lugs, screws, washers and spade kit are NOT included and kit 0E3375 must be ordered separately. Torque, wiring and clearance details are not restated here, so confirm with official manuals.
Installation & Maintenance Guidelines
De-energize all sources with lockout procedures and use a licensed electrician per code and Generac instructions. Procure kit 0E3375 in advance since required hardware is excluded. After fitting, verify mechanical operation, torque and transfer testing, then schedule periodic inspection per guidance.
