Technical Overview
Overview & Function

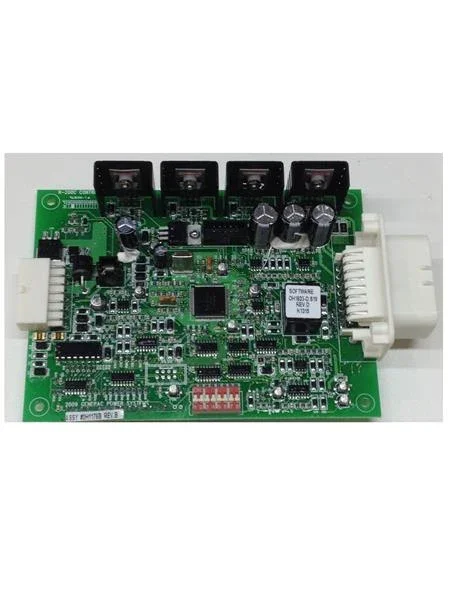

This Generac ASSY PCB R-200C control board, part 0H1176BSRV, supports control functions for listed 3600 RPM 2.4L generator applications. It provides a replacement board option for service requiring the R-200C identity. The listing centers on the 0H1176BSRV number for accurate identification.
Fitment & Compatibility
Fitment is tied to systems requiring the R-200C 3600 RPM 2.4L board identified as 0H1176BSRV. Buyers should verify the full part markings against the existing board. Matching the complete identity helps ensure correct pairing with the intended Generac generator platform.
Technical Construction & Specifications
Technical identity is Generac ASSY PCB R-200C, 3600 RPM, 2.4L, part 0H1176BSRV. The board is built as a generator control component for listed replacement service. No additional electrical ratings are claimed beyond the stated R-200C 0H1176BSRV application scope.
Installation & Maintenance Guidelines
Disconnect power and follow Generac guidance for control board replacement with qualified service personnel. Document connections before removal, seat the board correctly, and verify operation after installation. Retain the 0H1176BSRV number for service records and future maintenance.
