Technical Overview
Overview & Function
The Coleman 9630-758 NetZone control kit provides control box function for 9420A330 thermostat systems. It coordinates air-conditioner operation with optional heat strip or heat pump configurations. This heat-ready kit is for service replacement where 9630-758 is specified. It supports reliable climate integration in compatible Coleman-Mach installations.
Fitment & Compatibility
The kit is identified by 9630-758 for 9420A330 thermostat applications. It supports systems configured with heat strip or heat pump options as listed. Buyers should verify both control kit and thermostat numbers before ordering. The short token 9630 alone is not sufficient for accurate fitment.
Technical Construction & Specifications

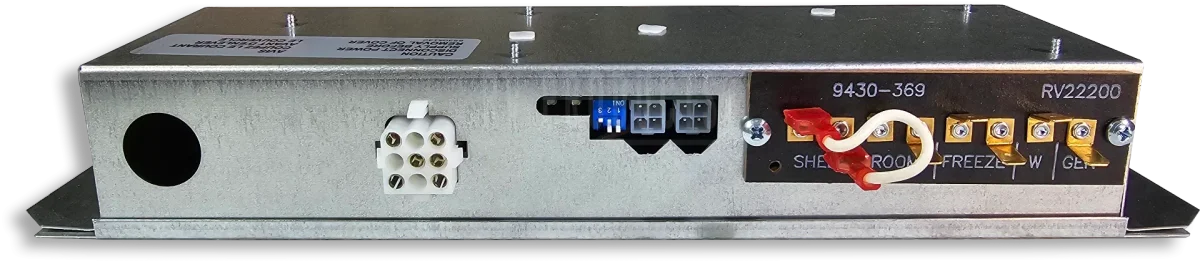

The assembly is an OEM NetZone control box built for the stated thermostat interface. It manages cooling plus optional heating configurations in listed systems. Compare the replacement kit with the original 9630-758 for wiring alignment. Test cooling, heat strip and heat pump functions as configured after installation.
Installation & Maintenance Guidelines
Installation should be performed by qualified personnel with power disconnected. Confirm thermostat model 9420A330 and heating option wiring before replacement. Secure the control box and verify all thermostat and system connections.
