Technical Overview
Overview & Function

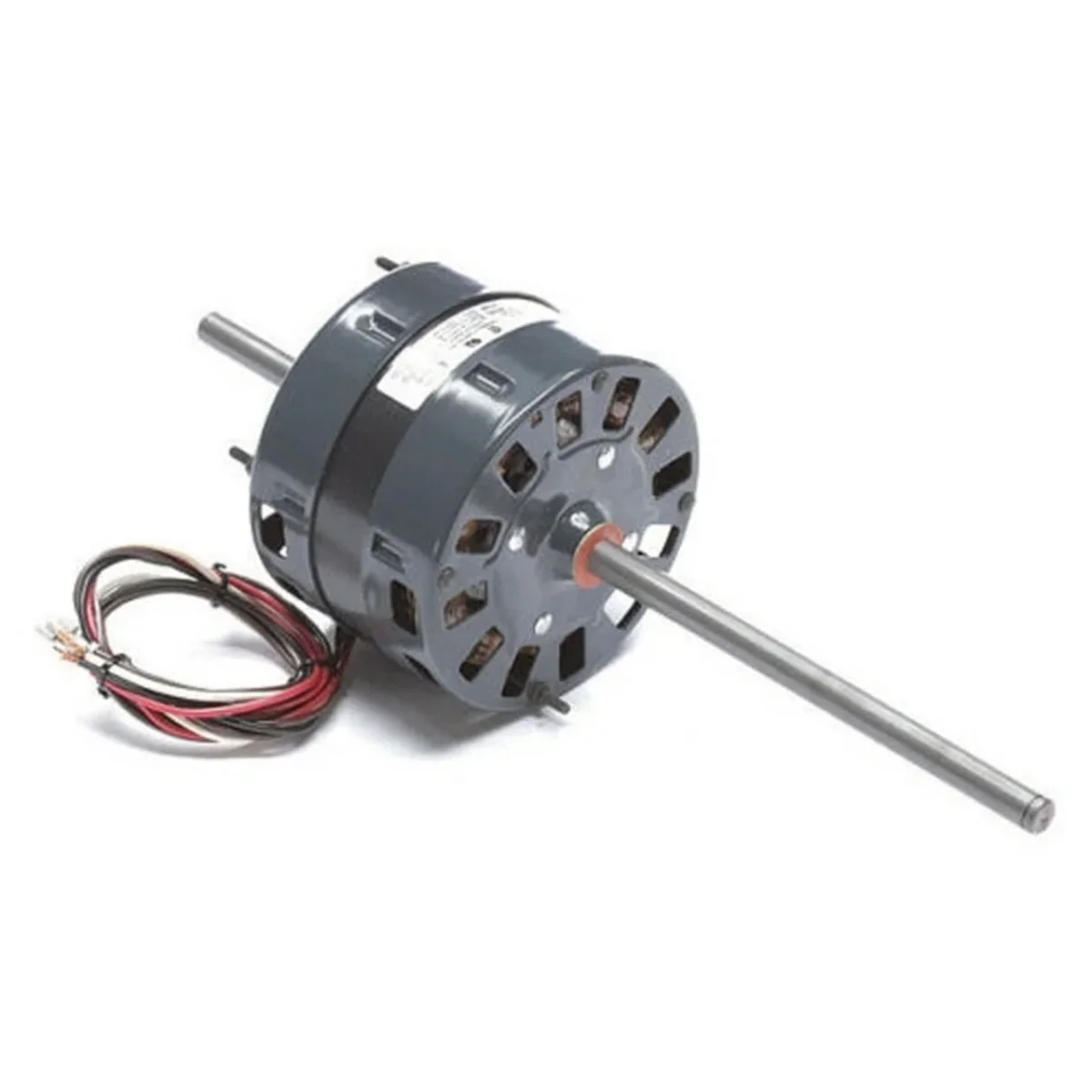

The Coleman-Mach 14683489 motor drives the fan and blower wheel that move conditioned air through compatible Coleman-Mach systems. When it degrades, rooms cool unevenly, airflow noise changes, or the system overheats from low air movement. The same-number 14683489 restores factory airflow volume and balance.
Fitment & Compatibility
This motor fits systems listing 14683489 on the motor plate or parts breakdown. Verify rotation, shaft, and frame against the original, since blower motors vary across Mach lines. It mounts to the factory bracket and wires to the specified capacitor circuit.
Technical Construction & Specifications
The motor is wound to the Coleman-Mach specification for the listed application with sealed bearings for continuous blower duty. Shaft and mounting dimensions match the original for a direct installation. Electrical ratings follow the replaced motor dataplate.
Installation & Maintenance Guidelines
Disconnect all power and verify zero energy. Mark blower-wheel position on the shaft before loosening, then unmount the motor. Fit the new 14683489 with the wheel at the recorded position, tighten set screws properly, and reconnect per the diagram. Test all speeds and confirm even airflow at every vent.
